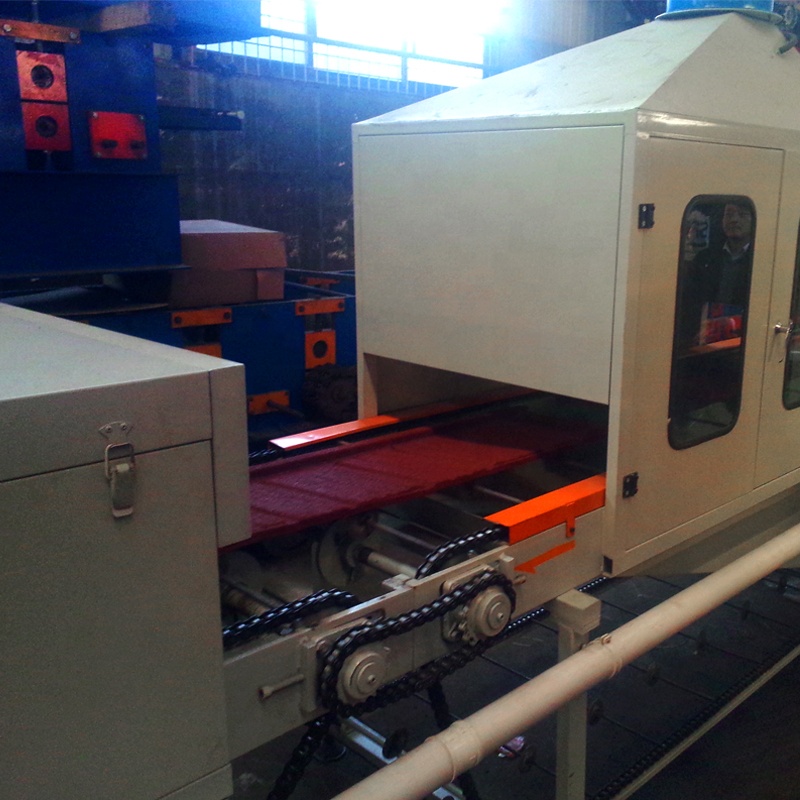

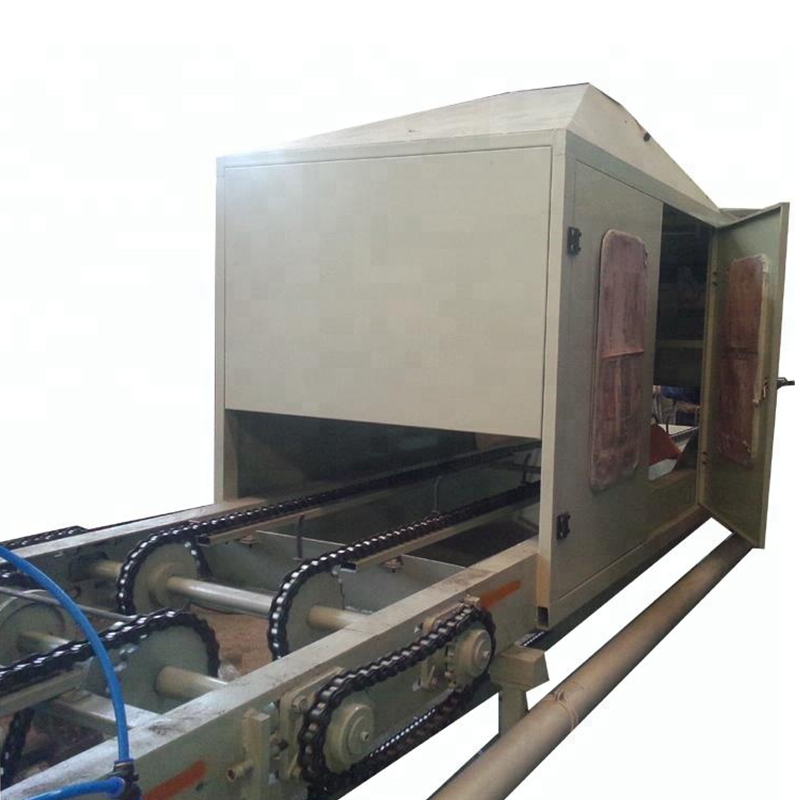

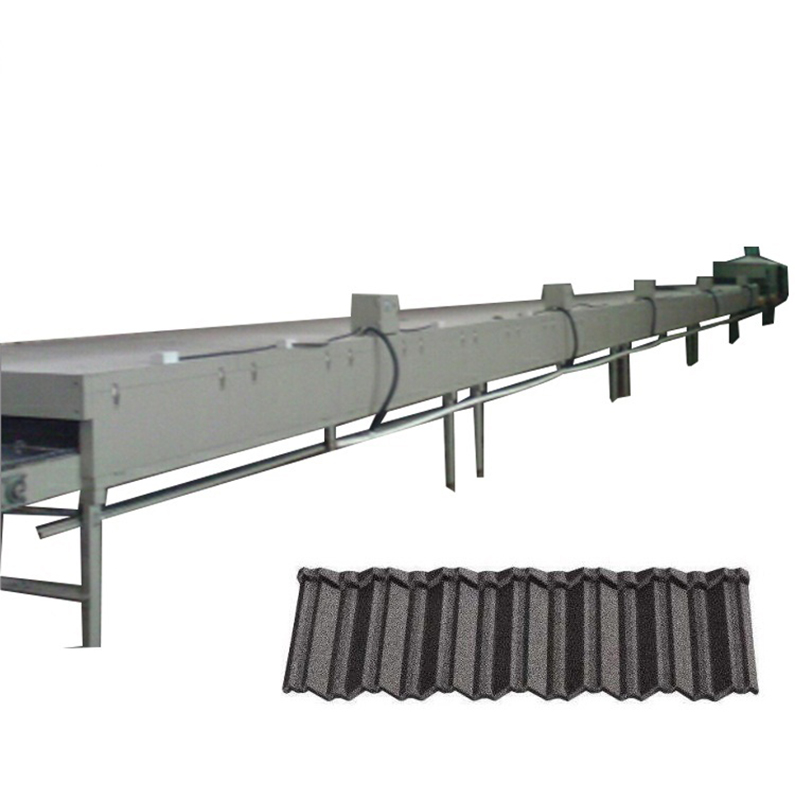

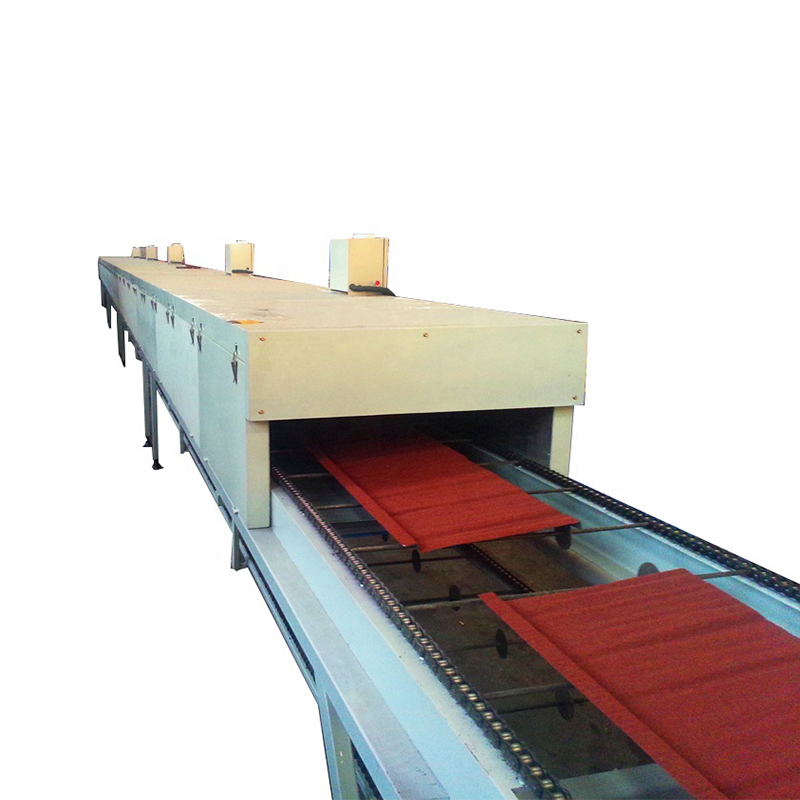

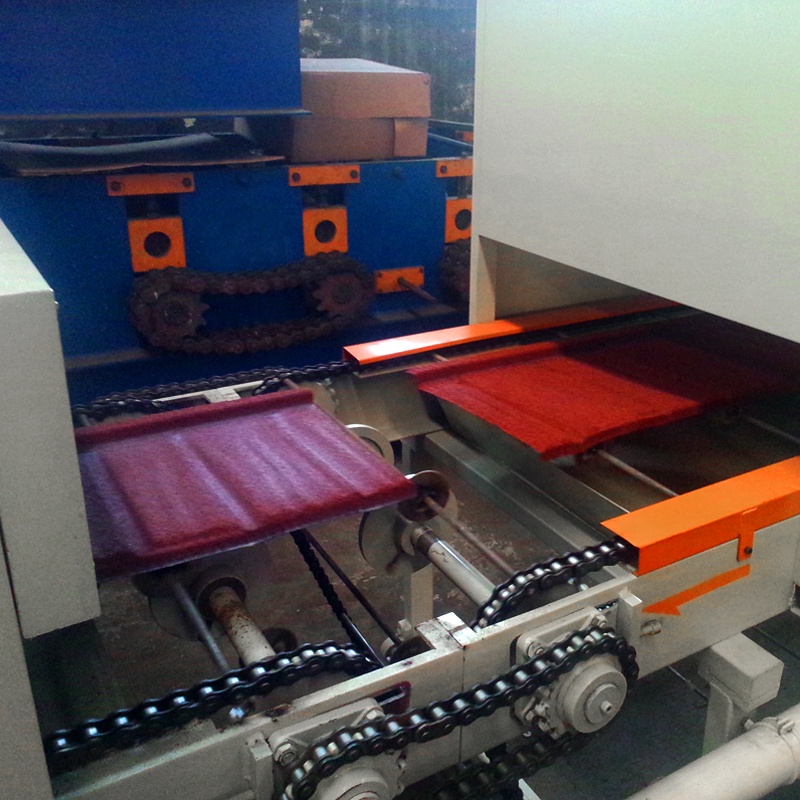

Roof Tile Production Line
SPECIFICATIONS
Product Type
Stone Coated Roof Tile Production Line
Product Standard
6-8pcs/min
Product Thickness
0.22-0.12mm
Specifications
| Tile material: | GL |
| Tile Thickness: | 0.22-0.12mm |
| Package: | 700-750pcs/pallet |
|
Machine length: |
About 30m |
| Specifications： | 450*1400 Can be customized specifications， 420*1340 recommended specifications |
| Working speed: | 6-8pcs/min |
|
Voltage: |
380v,3phase,60hz |
| Forming steps: | 11Rows |
| Shaft diameter: |
70mm,solid shaft |
|
Shaft material: |
High grade 45#steel |
| Roll material: | Bearing steel |
| Main frame: |
300 H |
| Mid-plate: |
14 mm |
| Chain: | 1 inch |
| Machine Motor: |
3kw |
| Precision: | 1mm |
| Cutting: | Hydraulic |
| Blade Material: | Gr12,Quenching |
| PLC： | DELTA |
| Screen: | Text/Touch |
| Language: | Chinese/English |
